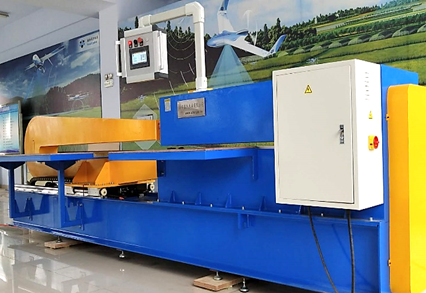

圆剪机 YJ 设备用途： 纸板圆剪机(割圆机)主要用于剪切变压器绝缘纸板和玻璃布板，剪切厚度为0.5~3mm，亦可剪切其它强度相同的板料。设计充分考虑到变压器制造过程中的工艺要求，保证了切面的光滑和平整。按照操作方式为分普通型和数控型圆剪机。 产品特点：
（1）调整方便，调过调整后架位置，并锁死后架，即可切制成批零件。 （2）该系列机床外形尺寸小，操作简单，节省机器占地面积。 （3）安全可靠。本机各传动部分均考虑到可靠性及维修便利性的特点，并加装防护确保人身安全。 （4）床头箱的两侧有支撑杆，支撑杆高度可调，当剪切大直径件时，作托扶绝缘纸板之用，确保剪切精度。 序号 | 主要参数 | YJФ80~1000型 | YJФ80~3000型 | 1 | 剪切纸板直径 | Ф80~1000mm | Ф80~3000mm | 2 | 剪切纸板厚度 | 0.5~3mm | 0.5~3mm | 3 | 剪切线速度 | 70m/min | 70m/min | 4 | 主电机功率、转数 | 0.75KW 950r/min | 2.2KW 950r/min | 5 | 上剪刀升降距离 | ＞25mm | ＞25mm | 6 | 上压料盘升降距离 | ＞25mm | ＞25mm | 7 | 剪切纸板椭圆度 | ±1mm | ±1mm | 8 | 尾座重复定位精度 | ±0.1mm（数控型） | ±0.1mm（数控型）
|
序号 | 主要参数 | YJФ80~1000型 | YJФ80~3000型 | 1 | 剪切纸板直径 | Ф80~1000mm | Ф80~3000mm | 2 | 剪切纸板厚度 | 0.5~3mm | 0.5~3mm | 3 | 剪切线速度 | 70m/min | 70m/min | 4 | 主电机功率、转数 | 0.75KW 950r/min | 2.2KW 950r/min | 5 | 上剪刀升降距离 | ＞25mm | ＞25mm | 6 | 上压料盘升降距离 | ＞25mm | ＞25mm | 7 | 剪切纸板椭圆度 | ±1mm | ±1mm | 8 | 尾座重复定位精度 | ±0.1mm（数控型） | ±0.1mm（数控型） |
